PowerFlex
PowerFlex
360/480/600/720/840/1000kW

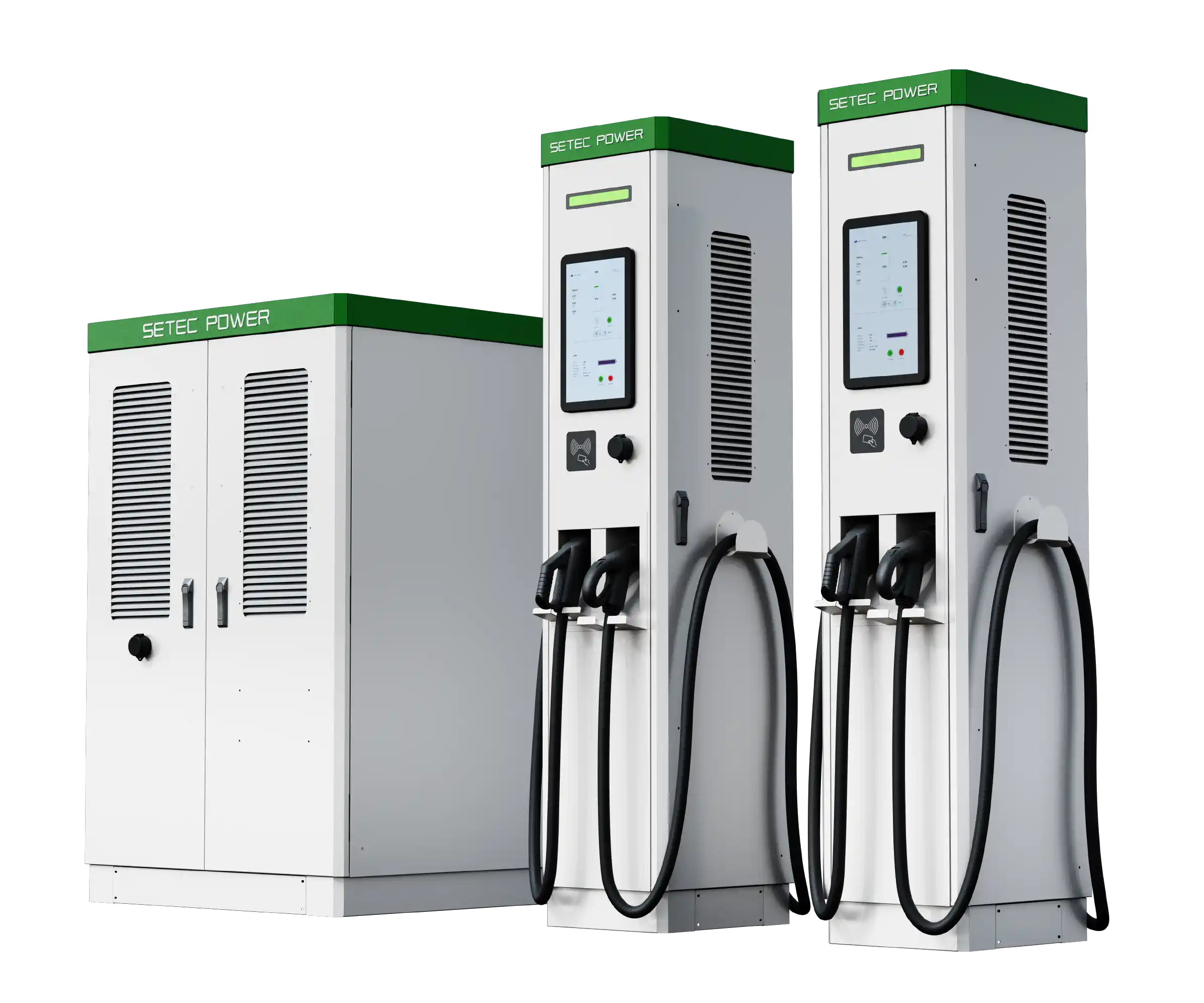

PowerFlex is a distributed DC charging system designed for multi-terminal fast charging scenarios, featuring highly flexible configuration capabilities. The number of EV dispensers can be customized based on site scale and operational requirements.

Power cabinet adopts a modular design, with each power module delivering up to 30kW output. Charging connectors (CCS/NACS/CHAdeMO) can be customized according to usage scenarios and vehicle model requirements to meet diverse operational needs.
High-power Charging High-power Charging
Flexible Deployment Flexible Deployment
Unified Management Unified Management
Modular Design Modular Design
Power Distribution Power Distribution
Remote Management Remote Management
Get a Quote Brochure
powerflex-setecpower

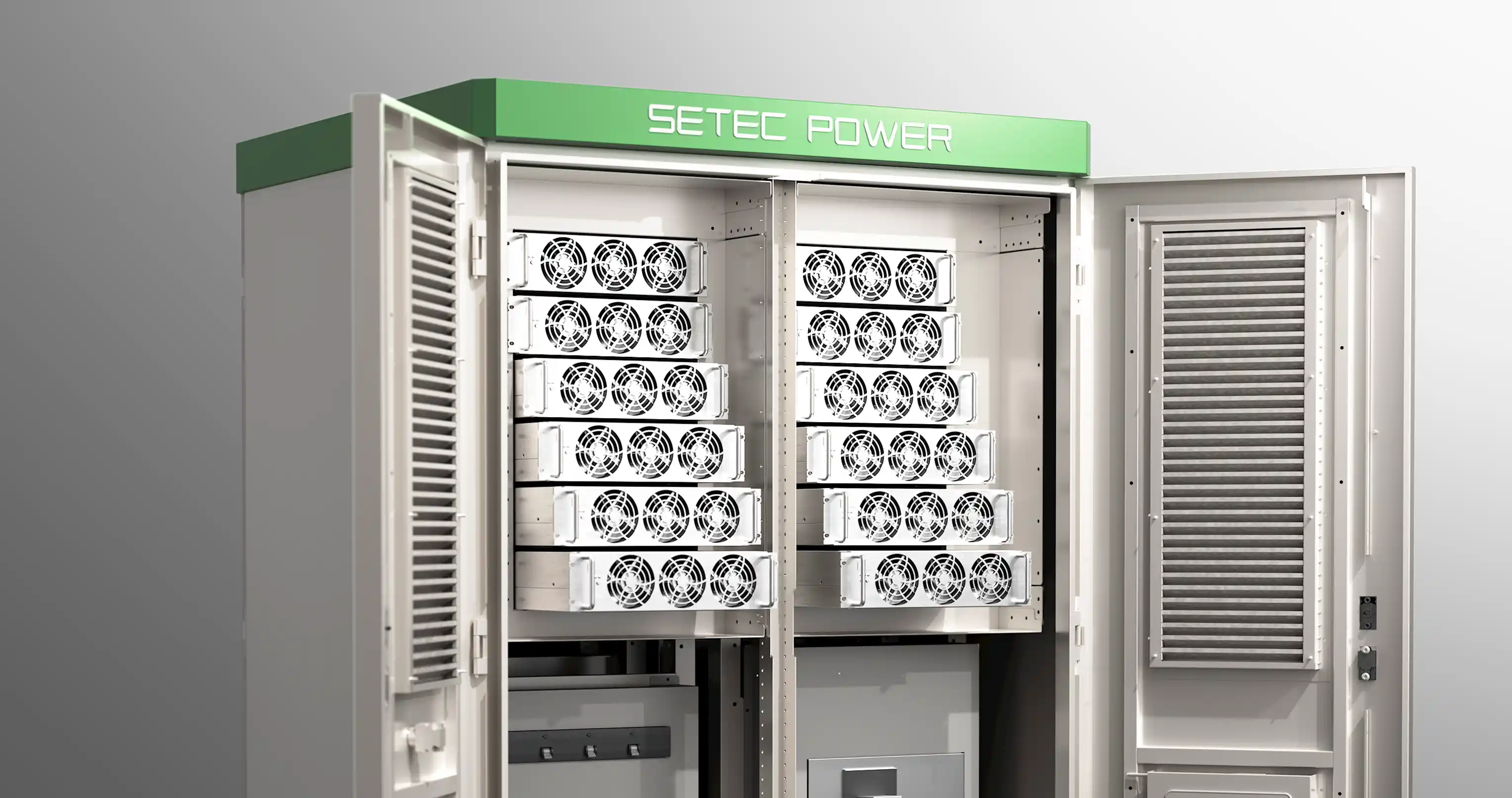

Scalable Modules
Scalable Modules
The power cabinet adopts a modular design, with each module capable of delivering up to 30kW power, allowing flexible configuration of power capacity according to different operational phases. During initial deployment, there's no need to install all power modules at once, effectively controlling initial investment costs.

As business develops or charging demand increases, power modules and EV dispensers quantities can be easily added without replacing existing equipment or interrupting operations, achieving seamless upgrades.

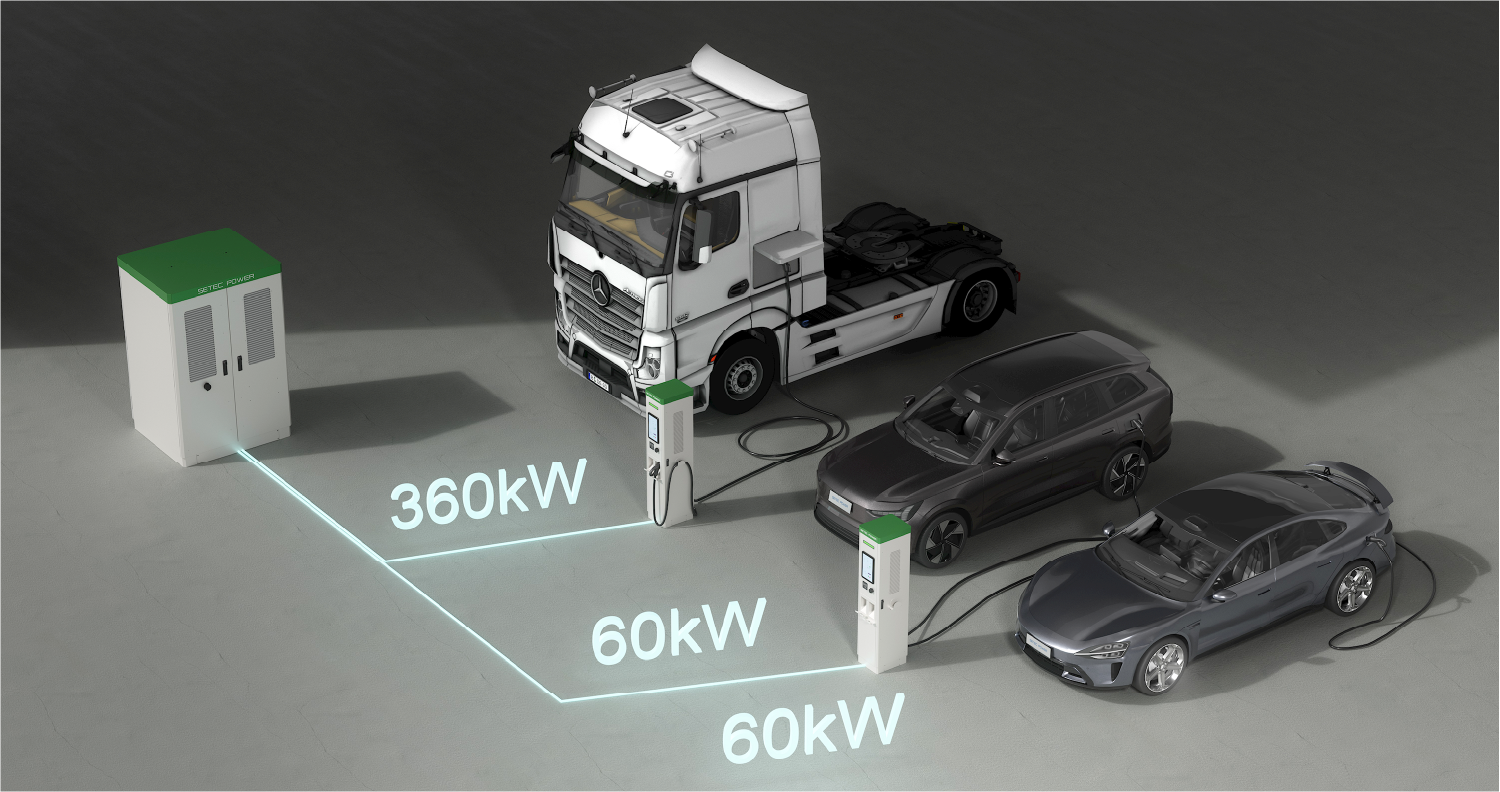

Dynamic Power Distribution
Dynamic Power Distribution
PowerFlex can real-time identify the charging requirements of connected vehicle BMS systems and intelligently allocate corresponding power levels to meet the different power charging needs of various vehicle models, achieving intelligent dynamic power output across multiple EV dispensers.

Under constant total power capacity, it can achieve dynamic power allocation among multiple EV dispensers, improving equipment utilization and operational efficiency.

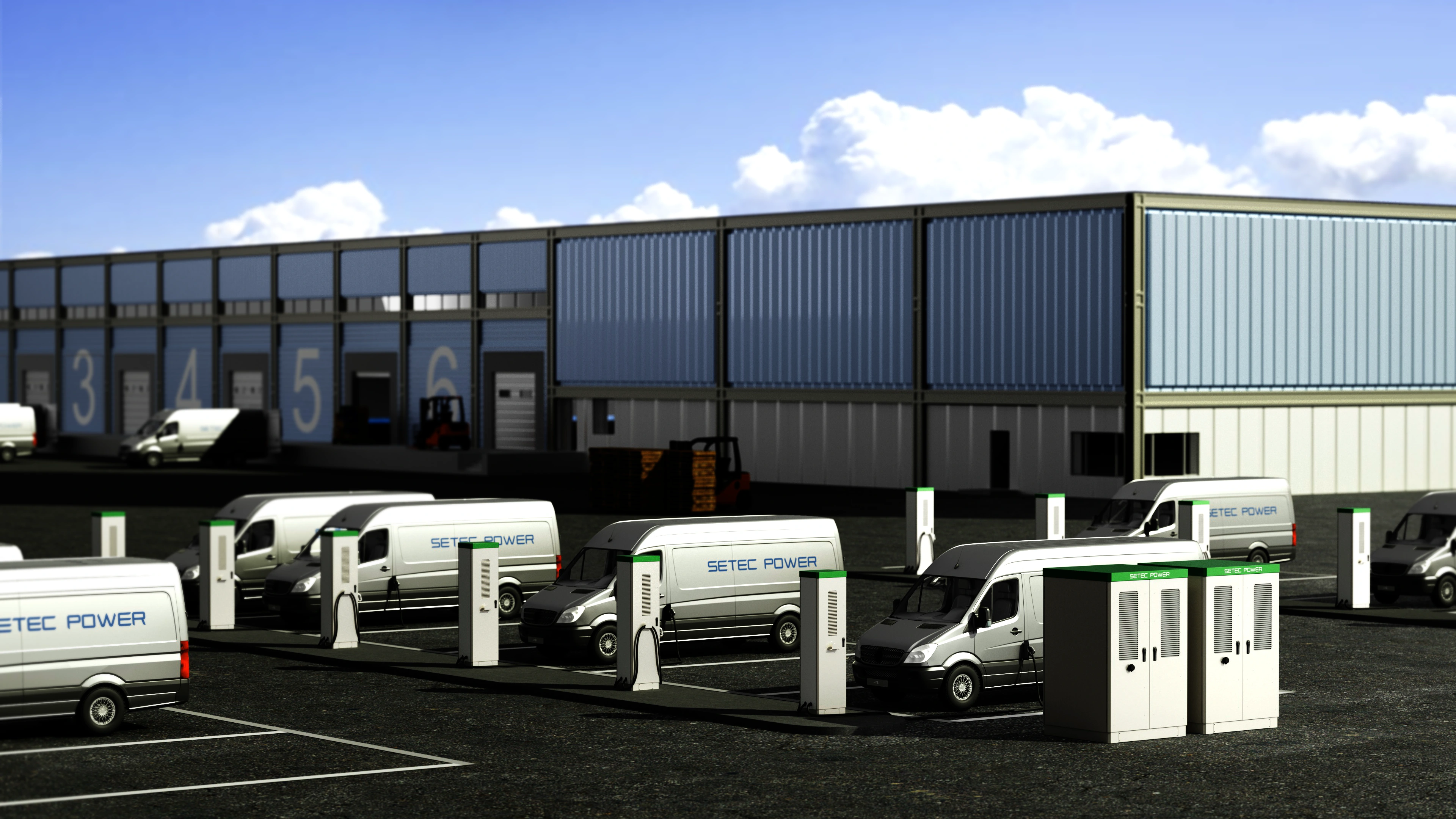

Enhanced Space Utilization
Enhanced Space Utilization
PowerFlex employs a distributed design with power cabinet and EV dispenser separation, concentrating core power modules in the power cabinet while making front-end charging EV dispensers more lightweight and compact, thereby reducing equipment footprint on-site.

This design is suitable for highway service areas, commercial fleets, and other space-constrained scenarios.
Specifications
Model360kW480kW
Power Cabinet
Phase/Lines3 Phase+Neutral+PE
Input Voltage380Vac/480Vac/DC
Input Frequency50Hz/60Hz((±10%)
Output Voltage150-1000Vdc
Output Power360kW480kW
Output Current600A600A
Inside Power Module30kW*1230kW*16
Protection GradeIP 54
Dimension1240*980*1680mm1240*980*1880mm
Delivery Weight580kg650kg
EV Dispenser
AdaptersCCS1/CCS2/CHAdeMO/NACS/GBT
Touch-Display15 Inch Daylight Readable Touchscreen
Protection GradeIP 55
Dimension460*560*1980mm
Delivery Weight200kg


powerflex-setecpower
Product OptionsEstimated delivery date: 7-20 days
360kW
480kW
600kW
720kW
1000kW
Configuration RequirementsEstimated delivery date: 7-20 days
Continue
Specific delivery dates may vary depending on product configuration and design
