Residential Energy
Residential Energy
6K / 8K / 10K / 12K

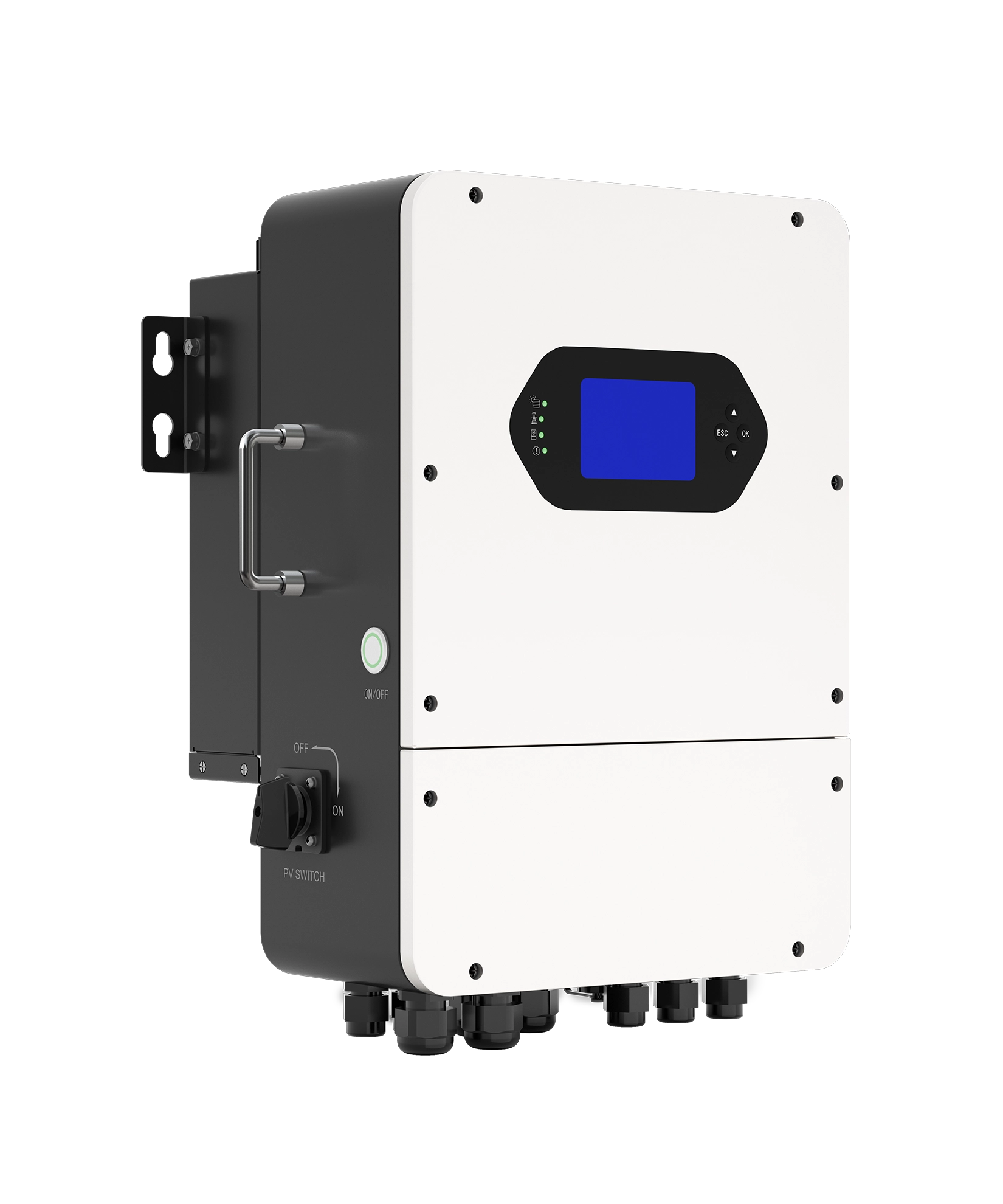

This Single-Phase Hybrid Inverter stores energy from solar or the grid, enabling a continuous power supply for home appliances during outages or off-grid operation. Designed for residential and small commercial energy systems, it combines fast grid-to-off-grid switching, flexible parallel expansion, and intelligent energy management in a compact, integrated design.
Adaptive Charging Adaptive Charging
Load Optimization Load Optimization
High-Power Output High-Power Output
Smart Monitoring Smart Monitoring
Parallel Control Parallel Control
Rapid Switching Rapid Switching
Get a Quote Brochure
Single-Phase-Hybrid-Inverter-setecpower

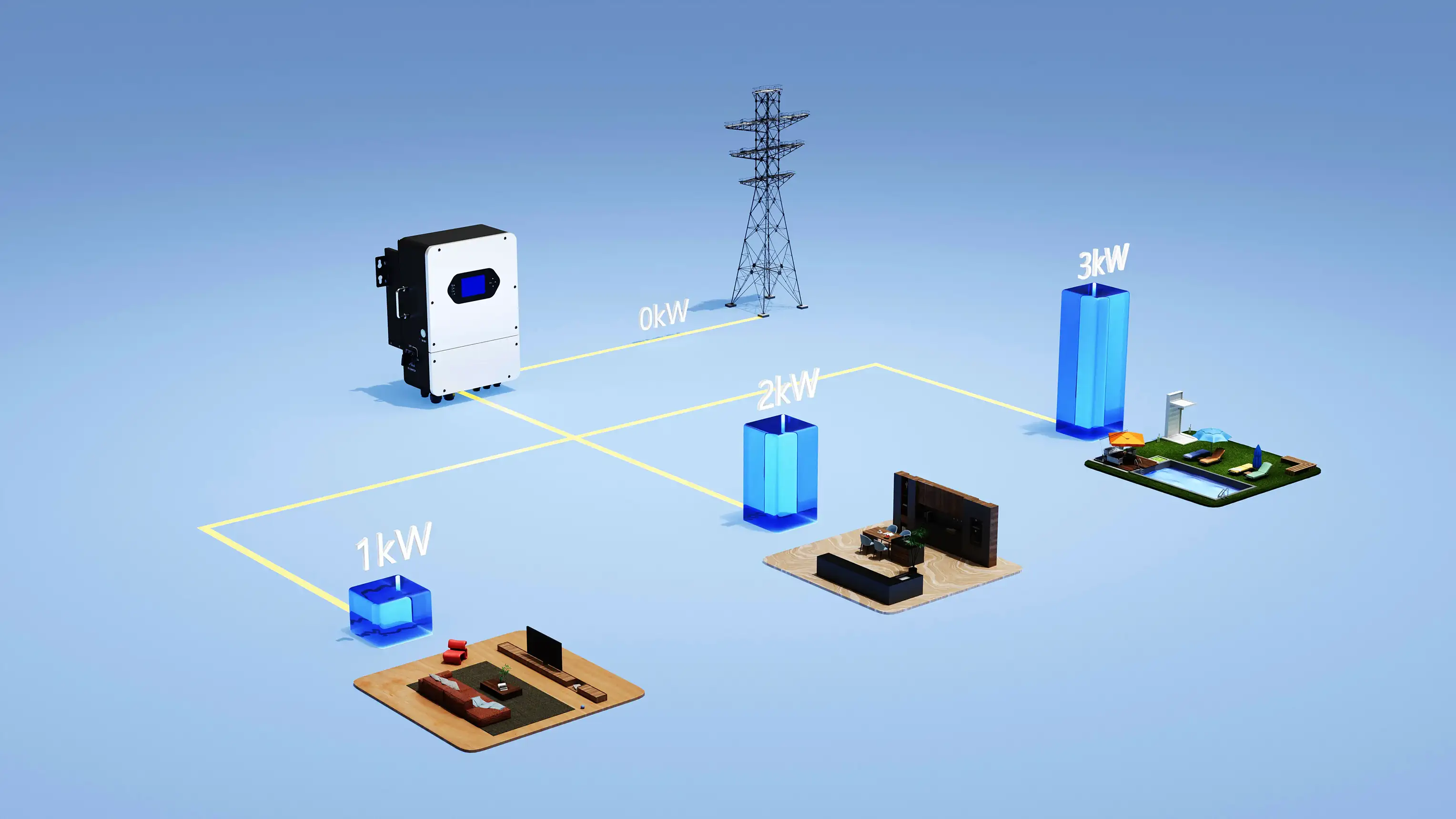

Full Household Load Support
Full Household Load Support
Stored energy is always available at any time, whether during the day, at night, or in the event of a power outage.

The Single-Phase Hybrid inverter reliably powers the entire household, including heating, air conditioning, and other high-demand appliances.

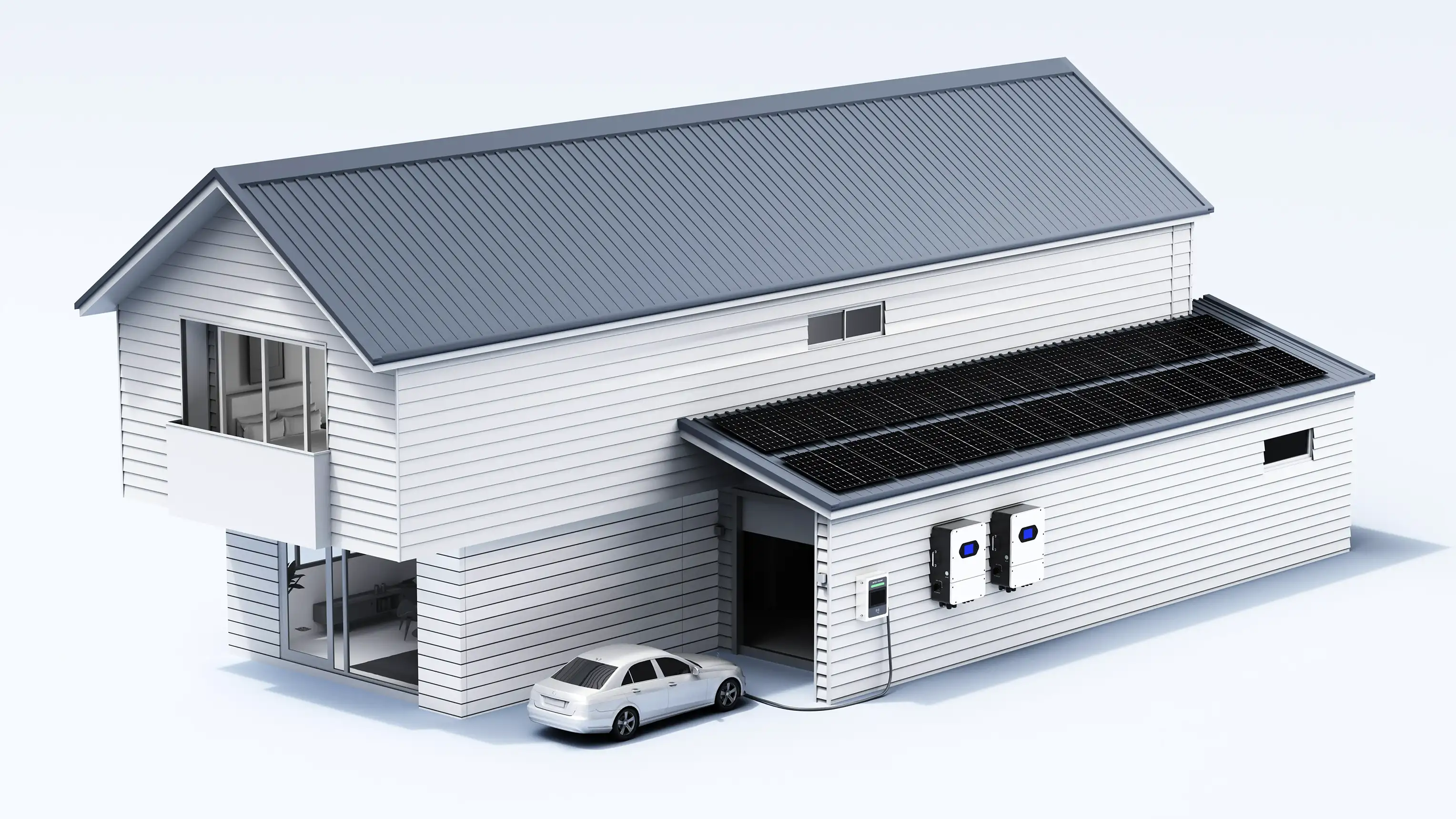

Store Extra Energy
Store Extra Energy
When solar power exceeds demand, the extra energy is stored for later use, helping maximize on-site energy utilization.

The inverter can also charge from the grid during low electricity price periods, ensuring flexible energy availability for household loads and electric vehicle charging, while supporting efficient energy use in different operating scenarios.
Specifications
Model6K8K10K12K
Battery Input Data
Battery TypeLead-acid or Li-ion
Battery Voltage Range(V)40~60
Max. Charging Current(A)135190220250
Max. Discharging Current(A)135190220250
External Temperature SensorYes
PV String Input Data
Max DC input Power(W)9000120001300015600
PV Input Voltage(V)370V(125V-500V)
MPPT Range(V)150-425V
Full Load DC Voltage Range300~425V
Start-up Voltage(V)125V
AC input/Output Data
Rated AC Output and UPS Power(W)600080001000012000
Max. AC Output Power(VA)660088001100013200
Grid TypeSingle Phase
Total Harmonic Distortion (THD)<3% (of nominal power)
DC Current injection<0.5% ln
Efficiency
Max. Efficiency97.60%
Euro Efficiency96.50%
MPPT Efficiency>99%
General Data
Operating Temperature Range(°C)-40-60℃,>55℃ Derating
CoolingSmart cooling
Noise(dB)<50 dB
Communication with BMSRS485; CAN
Monitoring modeWiFi+APP
Protection DegreeIP65
Installation StyleWall-mounted
Warranty5 Years (10 Years Optional)


Single-Phase-Hybrid-Inverter-setecpower
Product OptionsEstimated delivery date: 7-20 days
6K
8K
10K
12K
Configuration RequirementsEstimated delivery date: 7-20 days
Continue
Specific delivery dates may vary depending on product configuration and design
